ISLA LED

Elegant and economical LED street lamp for cities

Description

The ISLA LED luminaire offers an economical lighting solution based on LED technology. This luminaire is available with numerous light distributions, all characterised by low energy consumption and high-quality photometric performance.
The ISLA LED urban luminaire presents an elegant design that perfectly integrates any urban or residential area. It is particularly suited to lighting environments such as city centres, public squares, parks, residential streets and car parks.
More than an elegant luminaire, ISLA LED can integrate the latest remote technologies to offer a sophisticated and connected solution.

Light and elegant design by Michel Tortel

Designed by Michel Tortel, the ISLA LED outdoor luminaire presents an elegant curved shape that perfectly integrates any urban or residential area.
This LED-equipped luminaire, installed on a cylindrical conical, galvanised steel column, is an example of lightness and elegance.

For high energy savings

While providing high photometric performance, this ensemble offers the advantage of being a very economical solution.
The LensoFlex®2 concept enables LEDs to be placed horizontally and offers a lighting distribution that is specifically adapted to the needs of each application.

Photometric versatility

More than just an aesthetic solution for urban lighting, ISLA LED is equally impressive through its performance and photometric versatility.
It offers a wide range of light distributions, symmetrical and asymmetrical, to provide a harmonious compromise between safety, comfort and energy efficiency for various environments.

No light pollution

The optical compartment of the ISLA LED is sealed by flat glass that prevents any intrusive light to satisfy the most demanding criteria for light pollution (ULOR 0%), thereby ensuring a high-quality urban lighting.

A Zhaga-D4i certified range of luminaires

As a founding member of the Zhaga consortium, Schréder has participated in the creation of the Zhaga-D4i certification program and the initiative of this group is to standardize an interoperable ecosystem. The D4i specifications take the best of the standard DALI2 protocol and adapt it to an intra-luminaire environment.
As Zhaga-D4i certified luminaires, the ISLA LED range complies with all the criteria including mechanical fit, digital communication, data reporting and power requirements within a single luminaire, ensuring plug-and-play interoperability of luminaires and peripherals such as connectivity nodes.

Get your starlit sky back

The International Dark-Sky Association (IDA) is the recognised authority on light pollution. It provides tools, ressources, and a certification program for industries and companies willing to reduce light pollution. At Schréder, we are convinced that a more responsible lighting has the potential to preserve the environment. We are fully committed to reducing light pollution by joining the IDA’s certification program. Our approved range of luminaires complies with the IDA’s program of approval to deliver a light that protects the environment in all respects. Get your starlit sky back with the ISLA LED lighting solution.

Characteristics

General Information

Recommanded installation height (m)
4.0 -
6.0

Electrical information

Electrical class
Nominal voltage
Surge protection (kV)
10
Control protocol(s)
Associated control system(s)

Performance

Luminaire output flux (lm)
1600 -
5900
Power consumption (W)
18.1 -
50.5
Luminaire efficacy - up to (lm/W)
129

Optical information

Colour rendering index (CRI)
70
80
Upward Light Output Ratio (ULOR)
0%
ULR
0%
ULR may be different according to the configuration. Please consult us.
Meets IDA Dark Sky requirements when fitted with LEDs of 3000K or less.
ULOR may be different according to the configuration. Please consult us.

Housing and finish

Housing
Aluminium
Optic
Protector
Tempered glass
Tightness level
Impact resistance

Lifetime

All configurations

Operating conditions

Operating temperature range (Ta)
-30°C up to +35°C / -22°F up to 95°F
Depending on the luminaire configuration. For more details, please contact us.

Dimensions and mounting

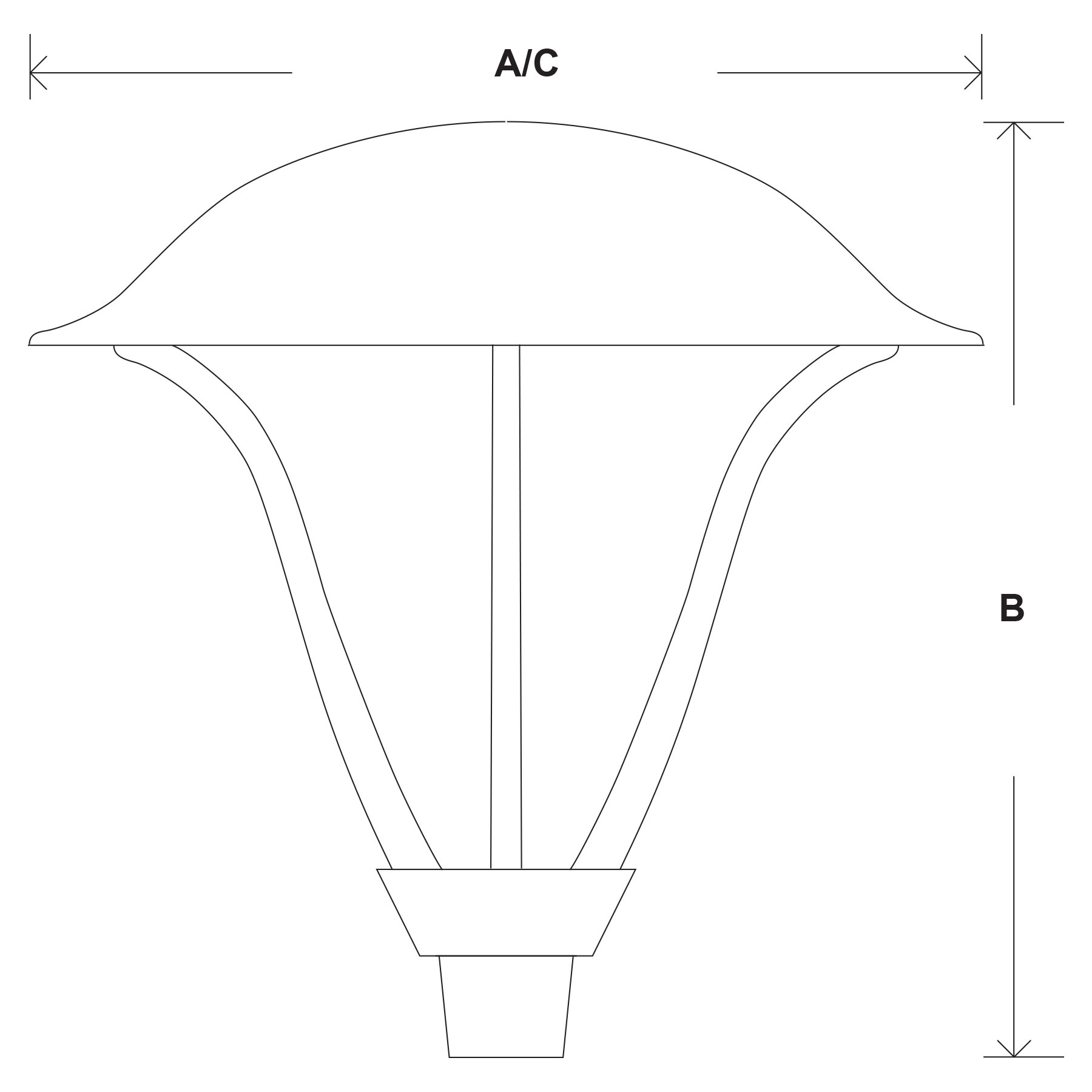

AxBxC (mm | inch)
647x636x647 | 25.5x25.0x25.5
Weight (kg | lbs)
9.5 | 20.9
Mounting possibilities
Post-top slip-over – Ø60mm
Post-top slip-over – Ø76mm

Control systems

Control options of ISLA LED

Isla LED offers the following dimming/control options:
· Bi-power
· Custom dimming profile
· 1-10V
· DALI
· Remote management

As an option, this luminaire can be equipped with standard 7-pin NEMA or Zhaga sockets, enabling easy access to the digital era of lighting with advanced lighting features that plan, monitor and control outdoor lighting networks.

Installation and Maintenance

Post-top mounting

The ISLA LED luminaire offers a slip-over mounting onto a Ø60 or Ø76mm spigot by tightening two M8 screws.
